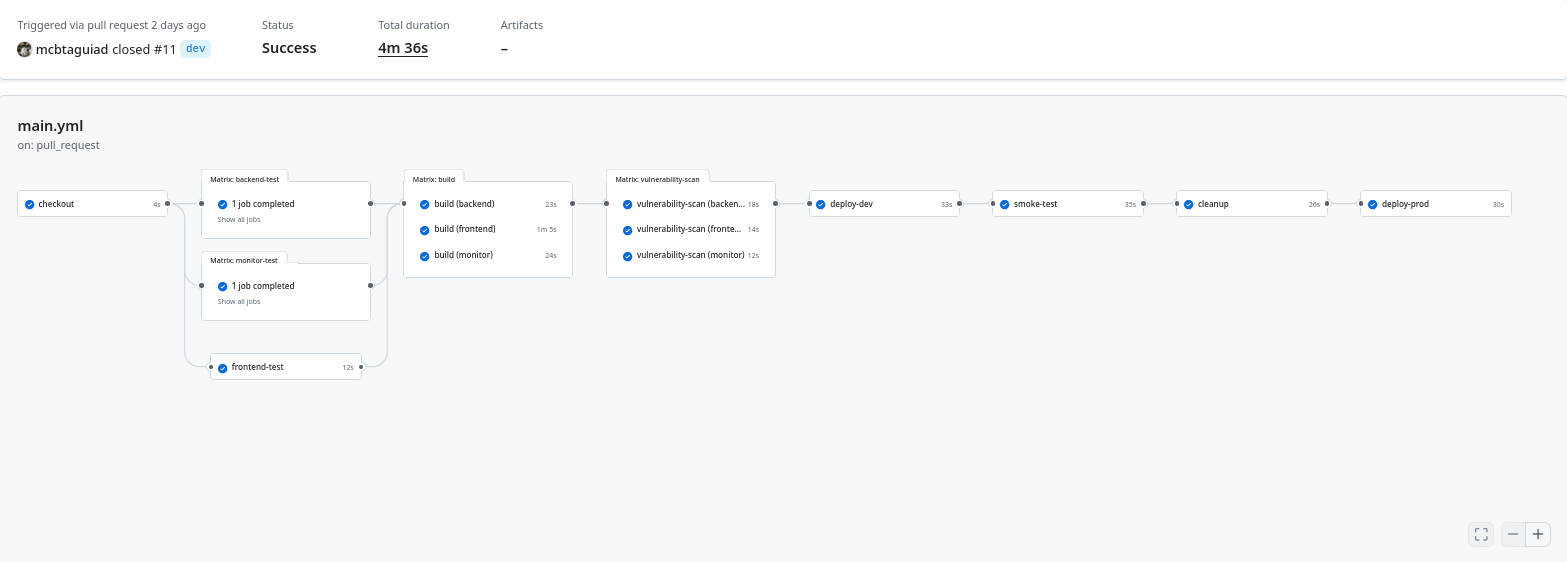

1checkout → test → build → scan → deploy → validate → cleanup → promote

1ghcr.io/<repo>/<service>:<tag>

  1name: istio-demo-cicd
  2
  3on:
  4  pull_request:
  5    branches: [ "main" ]
  6    types: [ closed ]
  7
  8env:
  9  REGISTRY: ghcr.io
 10  IMAGE_REPO: ${{ github.repository }}
 11
 12jobs:
 13  checkout:
 14    if: github.event.pull_request.merged == true
 15    runs-on: ubuntu-latest
 16    outputs:
 17      repo-path: ${{ steps.repo-path.outputs.path }}
 18    steps:
 19      - name: Checkout repository
 20        id: repo-path
 21        uses: actions/checkout@v4
 22
 23  # --- Go Tests ---
 24  backend-test:
 25    if: github.event.pull_request.merged == true
 26    needs: checkout
 27    runs-on: ubuntu-latest
 28    strategy:
 29      matrix:
 30        go-version: [1.26.1]
 31    steps:
 32      - name: Checkout repo
 33        uses: actions/checkout@v4
 34
 35      - name: Setup Go
 36        uses: actions/setup-go@v4
 37        with:
 38          go-version: ${{ matrix.go-version }}
 39
 40      # - name: Install dependencies
 41      #   working-directory: docker/backend
 42      #   run: go mod tidy
 43
 44      - name: Run Go tests
 45        working-directory: docker/backend
 46        run: |
 47          go mod init github.com/mcbtaguiad/istio-demo/backend
 48          go mod tidy
 49          go test ./... -v
 50
 51      - name: Run govulncheck
 52        working-directory: docker/backend
 53        run: |
 54          go mod tidy
 55          go mod download
 56          go install golang.org/x/vuln/cmd/govulncheck@latest
 57          govulncheck ./...
 58
 59
 60  # --- Python Tests ---
 61  monitor-test:
 62    if: github.event.pull_request.merged == true
 63    needs: checkout
 64    runs-on: ubuntu-latest
 65    strategy:
 66      matrix:
 67        python-version: [3.12.8]
 68    steps:
 69      - uses: actions/checkout@v4
 70
 71      - name: Setup Python
 72        uses: actions/setup-python@v5
 73        with:
 74          python-version: ${{ matrix.python-version }}
 75
 76      - name: Install dependencies
 77        run: |
 78          pip install flask pytest pylint black flake8 isort pytest-cov pip-audit
 79
 80      - name: Run pytest
 81        working-directory: docker/monitor
 82        run: pytest . --cov=./
 83
 84      - name: Lint with pylint
 85        working-directory: docker/monitor
 86        run: pylint app.py
 87
 88      - name: Format check with black
 89        working-directory: docker/monitor
 90        run: black --check app.py
 91
 92      - name: Import check with isort
 93        working-directory: docker/monitor
 94        run: isort --check-only app.py
 95
 96      - name: Scan Python dependencies with pip-audit
 97        working-directory: docker/monitor
 98        run: pip-audit -r requirements.txt --strict
 99
100  # --- React Tests ---
101  frontend-test:
102    if: github.event.pull_request.merged == true
103    needs: checkout
104    runs-on: ubuntu-latest
105    steps:
106      - name: Checkout repo
107        uses: actions/checkout@v4
108
109      - name: Setup Node
110        uses: actions/setup-node@v5
111        with:
112          node-version: 22
113          cache: 'npm'
114          cache-dependency-path: docker/frontend/package-lock.json
115
116      - name: Install dependencies
117        working-directory: docker/frontend
118        run: npm ci
119
120      - name: Run React tests
121        working-directory: docker/frontend
122        run: npm run test -- --coverage
123
124      - name: Scan Node dependencies with npm audit
125        working-directory: docker/frontend
126        run: npm audit --audit-level=high
127
128  # --- Docker Build & Push ---
129  build:
130    if: github.event.pull_request.merged == true
131    needs: [backend-test, monitor-test, frontend-test]
132    runs-on: ubuntu-latest
133    permissions:
134      contents: read
135      packages: write
136    strategy:
137      matrix:
138        service: [frontend, backend, monitor]
139
140    steps:
141      - name: Checkout repository
142        uses: actions/checkout@v4
143
144      - name: Set up Docker Buildx
145        uses: docker/setup-buildx-action@v3
146
147      - name: Log in to GitHub Container Registry
148        uses: docker/login-action@v2
149        with:
150          registry: ${{ env.REGISTRY }}
151          username: ${{ github.actor }}
152          password: ${{ secrets.GH_TOKEN }}
153
154      - name: Set service-specific variables
155        run: |
156          case "${{ matrix.service }}" in
157            frontend)
158              echo "IMAGE_NAME=frontend" >> $GITHUB_ENV
159              echo "CONTEXT=./docker/frontend" >> $GITHUB_ENV
160              echo "PORT=8080" >> $GITHUB_ENV
161              ;;
162            backend)
163              echo "IMAGE_NAME=backend" >> $GITHUB_ENV
164              echo "CONTEXT=./docker/backend" >> $GITHUB_ENV
165              echo "PORT=3000" >> $GITHUB_ENV
166              ;;
167            monitor)
168              echo "IMAGE_NAME=monitor" >> $GITHUB_ENV
169              echo "CONTEXT=./docker/monitor" >> $GITHUB_ENV
170              echo "PORT=8000" >> $GITHUB_ENV
171              ;;
172          esac
173
174      - name: Determine image tag
175        id: tag
176        run: |
177          if [[ "${GITHUB_REF}" == refs/tags/* ]]; then
178            echo "IMAGE_TAG=${GITHUB_REF#refs/tags/}" >> $GITHUB_ENV
179          else
180            echo "IMAGE_TAG=${GITHUB_REF_NAME}" >> $GITHUB_ENV
181          fi
182
183      - name: Build and push Docker image
184        uses: docker/build-push-action@v4
185        with:
186          context: ${{ env.CONTEXT }}
187          file: ${{ env.CONTEXT }}/Dockerfile
188          push: true
189          tags: |
190            ${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/${{ env.IMAGE_NAME }}:${{ env.IMAGE_TAG }}
191            ${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/${{ env.IMAGE_NAME }}:${{ github.sha }}
192          labels: |
193            org.opencontainers.image.created=${{ github.run_started_at }}
194            org.opencontainers.image.revision=${{ github.sha }}
195            org.opencontainers.image.source=https://github.com/${{ github.repository }}
196            org.opencontainers.image.title=istio-demo
197            org.opencontainers.image.version=${{ env.IMAGE_TAG }}
198          build-args: |
199            ENVIRONMENT=${{ github.ref_name == 'main' && 'prod' || 'dev' }}
200
201          cache-from: type=gha
202          cache-to: type=gha,mode=max
203
204  vulnerability-scan:
205    if: github.event.pull_request.merged == true
206    needs: build
207    runs-on: ubuntu-latest
208    strategy:
209      matrix:
210        service: [frontend, backend, monitor]
211    steps:
212      - name: Log in to GitHub Container Registry
213        uses: docker/login-action@v2
214        with:
215          registry: ${{ env.REGISTRY }}
216          username: ${{ github.actor }}
217          password: ${{ secrets.GH_TOKEN }}
218      - name: Scan Docker image with Trivy
219        uses: aquasecurity/trivy-action@v0.35.0
220        with:
221          scan-type: image
222          image-ref: ${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/${{ matrix.service }}:${{ github.ref_name }}
223          exit-code: '1'
224          severity: HIGH,CRITICAL
225          format: table
226          ignore-unfixed: true

1build → scan → deploy-dev → smoke-test → cleanup → deploy-prod

1kustomize edit set image backend-v1=<repo>/backend:$SHA_OLD
2kustomize edit set image backend-v2=<repo>/backend:$SHA_NEW

1kubectl apply -k kube/ab-testing/environments/demo-dev

 1#!/bin/sh
 2set -euo pipefail
 3
 4# BASE_URL="http://192.168.254.220"
 5WEB_BASE_URL="${WEB_BASE_URL:?WEB_BASE_URL environment variable not set}"
 6API_BASE_URL="${API_BASE_URL:?API_BASE_URL environment variable not set}"
 7
 8# Helper function for curl with status check
 9function curl_check() {
10  local METHOD=$1
11  local URL=$2
12  local DATA=${3:-""}
13  local AUTH=${4:-""}
14
15  if [ -n "$DATA" ]; then
16    RESPONSE=$(curl -s -w "\n%{http_code}" -X "$METHOD" "$URL" \
17      -H "Content-Type: application/json" \
18      -H "Authorization: Bearer $AUTH" \
19      -d "$DATA")
20  else
21    RESPONSE=$(curl -s -w "\n%{http_code}" -X "$METHOD" "$URL" \
22      -H "Authorization: Bearer $AUTH")
23  fi
24
25  HTTP_CODE=$(echo "$RESPONSE" | tail -n1)
26  BODY=$(echo "$RESPONSE" | sed '$d')
27
28  if [ "$HTTP_CODE" -lt 200 ] || [ "$HTTP_CODE" -ge 300 ]; then
29    echo "Request to $URL failed with status $HTTP_CODE"
30    echo "Response body: $BODY"
31    exit 1
32  fi
33
34  echo "$BODY"
35}
36
37# API Health
38printf "\n======** API Health **======\n"
39curl_check GET "$API_BASE_URL/api/health"
40echo
41
42# Frontend Health (/app)
43printf "\n======** Frontend /app Health **======\n"
44STATUS=$(curl -s -L -o /dev/null -w "%{http_code}" "$WEB_BASE_URL/app")
45if [ "$STATUS" -ne 200 ]; then
46  echo "Frontend /app failed with status $STATUS"
47  exit 1
48fi
49echo "status: $STATUS"
50
51# Frontend Health (/status)
52printf "\n======** Frontend /status Health **======\n"
53STATUS=$(curl -s -o /dev/null -w "%{http_code}" "$WEB_BASE_URL/status")
54if [ "$STATUS" -ne 200 ]; then
55  echo "Frontend /status failed with status $STATUS"
56  exit 1
57fi
58echo "status: $STATUS"
59
60# Create dummy accounts
61printf "\n======** Create User 'admin' **======\n"
62curl_check POST "$API_BASE_URL/api/register" '{"username":"admin","password":"admin"}'
63echo
64
65printf "\n======** Create User 'jonathan' **======\n"
66curl_check POST "$API_BASE_URL/api/register" '{"username":"jonathan","password":"123"}'
67echo
68
69# Get token for 'admin'
70printf "\n======** Get Admin Token **======\n"
71TOKEN=$(curl_check POST "$API_BASE_URL/api/login" '{"username":"admin","password":"admin"}' | jq -r '.token')
72if [ -z "$TOKEN" ] || [ "$TOKEN" == "null" ]; then
73  echo "Failed to obtain JWT token"
74  exit 1
75fi
76echo "Token: $TOKEN"
77
78# List users
79printf "\n======** List Users **======\n"
80curl_check GET "$API_BASE_URL/api/users" "" "$TOKEN" | jq
81echo
82
83# Show version
84printf "\n======** API Version **======\n"
85curl_check GET "$API_BASE_URL/api/version" "" "$TOKEN" | jq
86echo
87
88# Update user password
89printf "\n======** Update Password for 'jonathan' **======\n"
90curl_check PUT "$API_BASE_URL/api/users/jonathan" '{"password":"456"}' "$TOKEN"
91echo
92
93# Delete user
94printf "\n======** Delete User 'jonathan' **======\n"
95curl_check DELETE "$API_BASE_URL/api/users/jonathan" "" "$TOKEN"
96echo

1kubectl rollout undo deployment/<service>

  1  deploy-dev:
  2    if: github.event.pull_request.merged == true
  3    needs: vulnerability-scan
  4    runs-on: ubuntu-latest
  5
  6    steps:
  7      - uses: actions/checkout@v4
  8        with:
  9          fetch-depth: 2   1
 10
 11      - name: Setup kubectl
 12        uses: azure/setup-kubectl@v4
 13
 14      - name: Setup Kustomize
 15        run: |
 16          curl -s https://raw.githubusercontent.com/kubernetes-sigs/kustomize/master/hack/install_kustomize.sh | bash
 17          sudo mv kustomize /usr/local/bin/
 18
 19      - name: Set kubeconfig
 20        run: |
 21          mkdir -p $HOME/.kube
 22          echo "${{ secrets.KUBECONFIG }}" > $HOME/.kube/config
 23
 24      # A/B SHAs (based on merged PR commits)
 25      - name: Determine A/B SHAs
 26        run: |
 27          SHA_NEW=$(git rev-parse HEAD)
 28          SHA_OLD=$(git rev-parse HEAD~1)
 29
 30          echo "SHA_NEW=$SHA_NEW" >> $GITHUB_ENV
 31          echo "SHA_OLD=$SHA_OLD" >> $GITHUB_ENV
 32
 33      # A/B image injection
 34      - name: Update images via kustomize (A/B)
 35        run: |
 36          cd kube/ab-testing/environments/demo-dev
 37
 38          # Backend (A/B)
 39          kustomize edit set image backend-v1=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/backend:${{ env.SHA_OLD }}
 40          kustomize edit set image backend-v2=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/backend:${{ env.SHA_NEW }}
 41
 42          # Monitor (A/B)
 43          kustomize edit set image monitor-v1=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/monitor:${{ env.SHA_OLD }}
 44          kustomize edit set image monitor-v2=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/monitor:${{ env.SHA_NEW }}
 45
 46          # Frontend (latest only)
 47          kustomize edit set image frontend=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/frontend:${{ env.SHA_NEW }}
 48
 49      - name: Deploy
 50        run: |
 51          kubectl apply -k kube/ab-testing/environments/demo-dev --insecure-skip-tls-verify=true
 52
 53  smoke-test:
 54    if: github.event.pull_request.merged == true
 55    needs: deploy-dev
 56    runs-on: ubuntu-latest
 57
 58    env:
 59      # APP_HOST: ${{ secrets.DEV_APP_HOST }}
 60      NAMESPACE: demo-dev
 61      JOB_NAME: smoke-test
 62
 63    steps:
 64      - name: Checkout repo
 65        uses: actions/checkout@v4
 66
 67      # Setup kubectl (assumes kubeconfig stored as secret)
 68      - name: Set up kubeconfig
 69        run: |
 70          mkdir -p $HOME/.kube
 71          echo "${{ secrets.KUBECONFIG }}" > $HOME/.kube/config
 72
 73      # Wait for pods to be Ready
 74      - name: Wait for Kubernetes pods
 75        run: |
 76          echo "Waiting for pods in namespace $NAMESPACE..."
 77
 78          kubectl wait --for=condition=ready pod \
 79            --all \
 80            -n $NAMESPACE \
 81            --timeout=120s \
 82            --insecure-skip-tls-verify=true
 83
 84      - name: Verify rollout
 85        run: |
 86          kubectl rollout status deployment/frontend --insecure-skip-tls-verify=true -n $NAMESPACE
 87          kubectl rollout status deployment/backend-v1 --insecure-skip-tls-verify=true -n $NAMESPACE
 88          kubectl rollout status deployment/backend-v2 --insecure-skip-tls-verify=true -n $NAMESPACE
 89          kubectl rollout status deployment/monitor-v1 --insecure-skip-tls-verify=true -n $NAMESPACE
 90          kubectl rollout status deployment/monitor-v2 --insecure-skip-tls-verify=true -n $NAMESPACE
 91          kubectl rollout status deployment/redis --insecure-skip-tls-verify=true -n $NAMESPACE
 92
 93      - name: Deploy smoke test job
 94        run: |
 95          kubectl create -k test/smoke-test/environments/demo-dev --insecure-skip-tls-verify=true
 96
 97      - name: Wait for job completion
 98        run: |
 99          echo "Waiting for job to complete..."
100
101          kubectl wait \
102            --for=condition=complete \
103            job/$JOB_NAME \
104            -n $NAMESPACE \
105            --timeout=180s \
106            --insecure-skip-tls-verify=true
107
108      - name: Check job status
109        run: |
110          FAILED=$(kubectl get job $JOB_NAME -n $NAMESPACE -o jsonpath='{.status.failed}' --insecure-skip-tls-verify=true)
111          SUCCEEDED=$(kubectl get job $JOB_NAME -n $NAMESPACE -o jsonpath='{.status.succeeded}' --insecure-skip-tls-verify=true)
112
113          echo "Succeeded: $SUCCEEDED"
114          echo "Failed: $FAILED"
115
116          if [ "$FAILED" != "" ] && [ "$FAILED" != "0" ]; then
117            echo "Smoke test FAILED"
118            kubectl logs job/$JOB_NAME -n $NAMESPACE --insecure-skip-tls-verify=true
119            exit 1
120          fi
121
122          if [ "$SUCCEEDED" == "1" ]; then
123            echo "Smoke test PASSED"
124          else
125            echo "Smoke test did not complete successfully"
126            kubectl logs job/$JOB_NAME -n $NAMESPACE --insecure-skip-tls-verify=true
127            exit 1
128          fi
129
130  cleanup:
131    if: github.event.pull_request.merged == true
132    needs: smoke-test
133    runs-on: ubuntu-latest
134
135    env:
136      NAMESPACE: demo-dev
137
138    steps:
139      - name: Checkout repo
140        uses: actions/checkout@v4
141
142      # Setup kubectl (assumes kubeconfig stored as secret)
143      - name: Set up kubeconfig
144        run: |
145          mkdir -p $HOME/.kube
146          echo "${{ secrets.KUBECONFIG }}" > $HOME/.kube/config
147
148      - name: Delete smoke test job
149        run: |
150          kubectl delete -k test/smoke-test/environments/demo-dev --insecure-skip-tls-verify=true
151
152      - name: Delete demo-dev
153        run: |
154          kubectl delete -k kube/ab-testing/environments/demo-dev --insecure-skip-tls-verify=true
155
156
157  deploy-prod:
158    if: github.event.pull_request.merged == true
159    needs: cleanup
160    runs-on: ubuntu-latest
161
162    steps:
163      - uses: actions/checkout@v4
164        with:
165          fetch-depth: 2   1
166
167      - name: Setup kubectl
168        uses: azure/setup-kubectl@v4
169
170      - name: Setup Kustomize
171        run: |
172          curl -s https://raw.githubusercontent.com/kubernetes-sigs/kustomize/master/hack/install_kustomize.sh | bash
173          sudo mv kustomize /usr/local/bin/
174
175      - name: Set kubeconfig
176        run: |
177          mkdir -p $HOME/.kube
178          echo "${{ secrets.KUBECONFIG }}" > $HOME/.kube/config
179
180      # A/B SHAs (based on merged PR commits)
181      - name: Determine A/B SHAs
182        run: |
183          SHA_NEW=$(git rev-parse HEAD)
184          SHA_OLD=$(git rev-parse HEAD~1)
185
186          echo "SHA_NEW=$SHA_NEW" >> $GITHUB_ENV
187          echo "SHA_OLD=$SHA_OLD" >> $GITHUB_ENV
188
189      # A/B image injection
190      - name: Update images via kustomize (A/B)
191        run: |
192          cd kube/ab-testing/environments/demo-prod
193
194          # Backend (A/B)
195          kustomize edit set image backend-v1=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/backend:${{ env.SHA_OLD }}
196          kustomize edit set image backend-v2=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/backend:${{ env.SHA_NEW }}
197
198          # Monitor (A/B)
199          kustomize edit set image monitor-v1=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/monitor:${{ env.SHA_OLD }}
200          kustomize edit set image monitor-v2=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/monitor:${{ env.SHA_NEW }}
201
202          # Frontend (latest only)
203          kustomize edit set image frontend=${{ env.REGISTRY }}/${{ env.IMAGE_REPO }}/frontend:${{ env.SHA_NEW }}
204
205      - name: Deploy
206        run: |
207          kubectl apply -k kube/ab-testing/environments/demo-prod --insecure-skip-tls-verify=true
