Kubernetes Multi-Tenancy

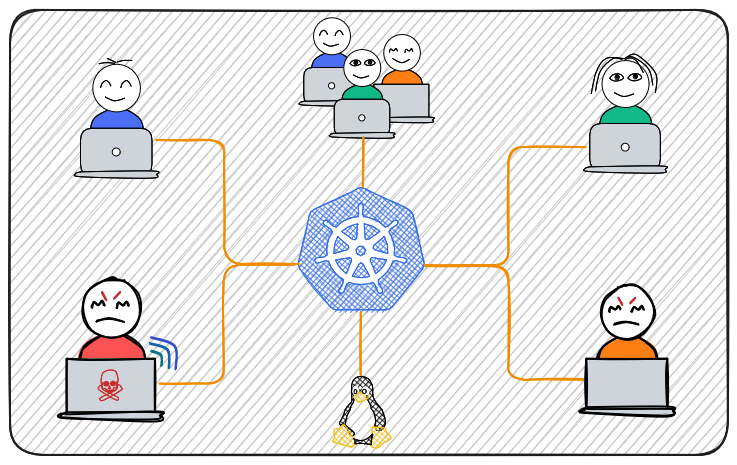

Multi-tenancy in Kubernetes is the practice of running multiple users, teams, or customers (tenants) on a shared cluster while keeping them isolated, secure, and fairly resourced.
At first glance, it sounds simple—just create namespaces and you’re done. In reality, building a safe multi-tenant platform requires layering multiple controls together.
Table of Contents
Overview
Let’s assign team web-dev to namespace web.
The following resources will be created:
- Access Control (RBAC)
- Resource Allocation
- Network Isolation
- Policy Enforcement
User Creation
Check my previous post.
1./create-user-k8s.sh web-dev web-dev 7 d
Access Control
Let’s use ClusterRole that will be reusable by multiple user/team.
clusterrole.yaml
1apiVersion: rbac.authorization.k8s.io/v1
2kind: ClusterRole
3metadata:
4 name: tenant-clusterrole
5rules:
6 - apiGroups: [""]
7 resources: ["pods", "services", "configmaps", "persistentvolumeclaims"]
8 verbs: ["get", "list", "watch", "create", "update", "delete"]
9
10 - apiGroups: ["apps"]
11 resources: ["deployments", "replicasets", "statefulsets"]
12 verbs: ["get", "list", "watch", "create", "update", "delete"]
13
14 - apiGroups: ["batch"]
15 resources: ["jobs", "cronjobs"]
16 verbs: ["get", "list", "watch", "create", "update", "delete"]
You can fine tune this depending on your requirements:
- add secret policy
- add network policy
- add ingresses
1- apiGroups: ["networking.k8s.io"]
2 resources: ["ingresses"]
3 verbs: ["get", "list", "watch", "create", "update", "delete"]
rolebinging.yaml
1apiVersion: rbac.authorization.k8s.io/v1
2kind: RoleBinding
3metadata:
4 name: web-rolebinding
5 namespace: web
6subjects:
7 - kind: User
8 name: web-dev
9 apiGroup: rbac.authorization.k8s.io
10roleRef:
11 kind: ClusterRole
12 name: tenant-clusterrole
13 apiGroup: rbac.authorization.k8s.io
Resource Allocation
Prevents tenant from exhausting cluster resources.
resourcequota.yaml
1apiVersion: v1
2kind: ResourceQuota
3metadata:
4 name: web-quota
5 namespace: web
6spec:
7 hard:
8 pods: "10"
9 requests.cpu: "2"
10 requests.memory: "2Gi"
11 limits.cpu: "4"
12 limits.memory: "4Gi"
13 persistentvolumeclaims: "5"
In you applications limit your pods/container using resources request and limits.
demo.yaml
1apiVersion: apps/v1
2kind: Deployment
3metadata:
4 labels:
5 app: redis
6 name: redis
7spec:
8 replicas: 1
9 selector:
10 matchLabels:
11 app: redis
12 template:
13 metadata:
14 labels:
15 app: redis
16 spec:
17 containers:
18 - name: redis
19 image: docker.io/bitnami/redis:latest
20 imagePullPolicy: Always
21 ports:
22 - containerPort: 6379
23 resources:
24 limits:
25 memory: 500Mi
26 cpu: 500m
27 requests:
28 memory: 250Mi
29 cpu: 250m
30 envFrom:
31 - configMapRef:
32 name: redis.environment
33 restartPolicy: Always
| Concept | Meaning |
|---|---|
| Request | Minimum guaranteed |
| Limit | Maximum allowed |
| Actual usage | Can vary between them |
NetworkPolicy
networkpolicy.yaml
Default deny all ingress + egress.
1apiVersion: networking.k8s.io/v1
2kind: NetworkPolicy
3metadata:
4 name: default-deny-all
5 namespace: web
6spec:
7 podSelector: {}
8 policyTypes:
9 - Ingress
10 - Egress
Allow traffic only within same namespace.
1apiVersion: networking.k8s.io/v1
2kind: NetworkPolicy
3metadata:
4 name: allow-same-namespace
5 namespace: web
6spec:
7 podSelector: {}
8 ingress:
9 - from:
10 - podSelector: {}
11 egress:
12 - to:
13 - podSelector: {}
14 policyTypes:
15 - Ingress
16 - Egress
Allow outbound internet access (DNS + HTTP/HTTPS).
1apiVersion: networking.k8s.io/v1
2kind: NetworkPolicy
3metadata:
4 name: allow-external-egress
5 namespace: web
6spec:
7 podSelector: {}
8 egress:
9 - to:
10 - namespaceSelector: {} # allow cluster DNS
11 ports:
12 - protocol: UDP
13 port: 53
14 - to:
15 - ipBlock:
16 cidr: 0.0.0.0/0
17 ports:
18 - protocol: TCP
19 port: 80
20 - protocol: TCP
21 port: 443
22 policyTypes:
23 - Egress
